CX2 Electric Coach Bus Highlights
Outstanding structural strength
Disk brakes
Regenerative braking
Front and rear air suspension
Long range on single charge
Innovation in a perfect package
Future is now and it’s electric
Dual in-wheel motor solution
Dual In -wheel Motor Solution with integrated regenerative braking recovers 30% of lost braking energy resulting in a quiet comfortable ride.
Buses enabled with ITS
Real time tracking, PIS, Video Surveillance, e-llckellng, etc, making them ideal for multi-modal transport and smart cities.
Fast charging technology
High power AC charging allows full charging from O -100°·0 SOC within 2 – 3 hours. No dependence on commercial charging stations: great savings on charging station investment & maintenance.
Battery
Billions of investment in the research, development and manufacturing of the Iron-Phosphate Battery on which BYD have performed numerous full-scale tests to ensure the highest possible safety and reliability.
Passenger safety
A flagship commute
Disk brakes with EBS
Real time tracking
CCTV surveillance
Passenger information safety
Medical kit
Glass hammers
Fire extinguisher
State-of-art BYD battery technology
Low energy consumption per km enabled by BYD in-built motor
Temperature sensors in battery
Longer range with single charge upto 200 km
Battery management system to ensure optimal performance
Used in more than 60,000 operational buses world-wide
Battery cooling system
Fire proof batteries and electric powertrain
Long life with minimal maintenance
Automatic fire extinguisher in battery pack
Low energy consumption per km enabled by BYD in-built motor
Electricity leakage sensors for batteries to hi tension wires

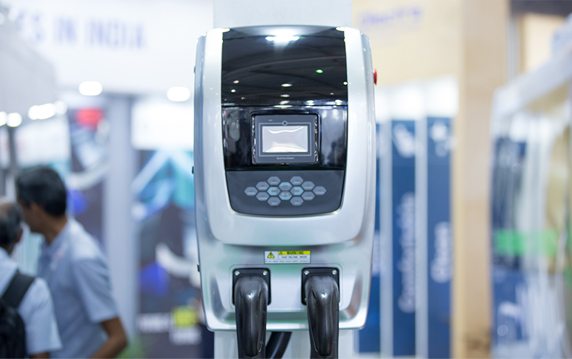

Fast charging solution
Backed by renowned BYD battery tech
| Input voltage | Three phase AC 380 V / 440 V |
| Input current | < 126A |
| Length/Width/Height | 690 mm /400 mm / 200 mm |
| Net weight | 30 Kg |
| Length of cable | 3m |
| Protect function | Short circuit protection Over temperature protection Lighning protection |
| Housing protection level | IP55 |
CX2 Electric Coach Bus Specs
Path breaking engineering
| GVM (kg) | 19500 |
| LxWx H (mm) | 12000 x 2550 x 3560 |
| Floor Height (mm) | 1175 |
| Seating Capacity | 45 + Driver |
| Maximum Power | 360 kW |
| Maximum Torque | 3000 Nm |
| Transmission/Gear | Automatic Transmission |
| Brake System | Disk Brake with ABS |
| Steering System | Power-assisted |
| Suspension Type | Front and Rear Air Suspension |
| Tyre Size | 295/80 R22.5 |
| Kneeling Mechanism | No |
| Battery Specification | Li-ion Phosphate Battery |
| Electrical Regeneration | Available |
| Range | Up to 250 km |
| Charging Time | 4-5 Hours. |
| Max Speed (kmph) | 100 (With Speed Limiting Device) |
| Acceleration | 0-30 (kmph) < 10.5 |
| Body Description | Meeting AIS 052 Specification |
| Air Conditioner | Available |
| Charging Mode | AC & DC Charging |
| Input Voltage | 3 Phase AC |
| Install Form | Wall-mounted/ Base Mounted |
| Protect Function | Short Circuit Protection / Surge protection/ Leakage protection/ Overload protection |
100% emission free
Completely designed and tested for India
1000+ Olectra buses commercially
operating in india
40+ city trials
completed in india
180+ Crores savings in fuel cost
8.5+ Cr kilometers covered in india
2+Cr litres of diesel saved
Equivalent to planting of 0.24Cr+ trees
Like to know more about CX2 Electric Coach Bus
1st company to deliver E-buses in india
